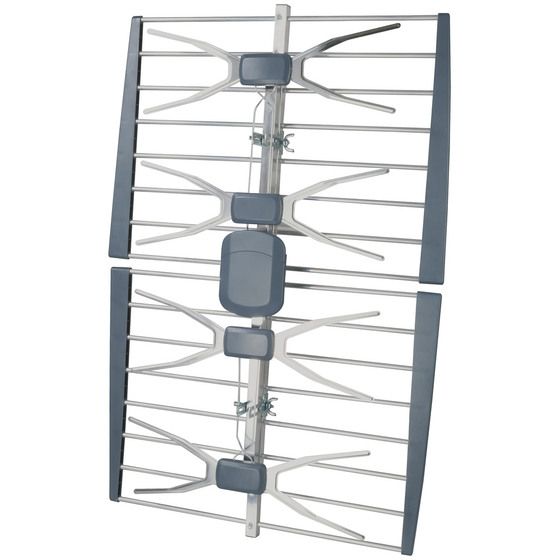

Heavy Duty UHF Phased Array TV Antenna

Product Code: LT3154

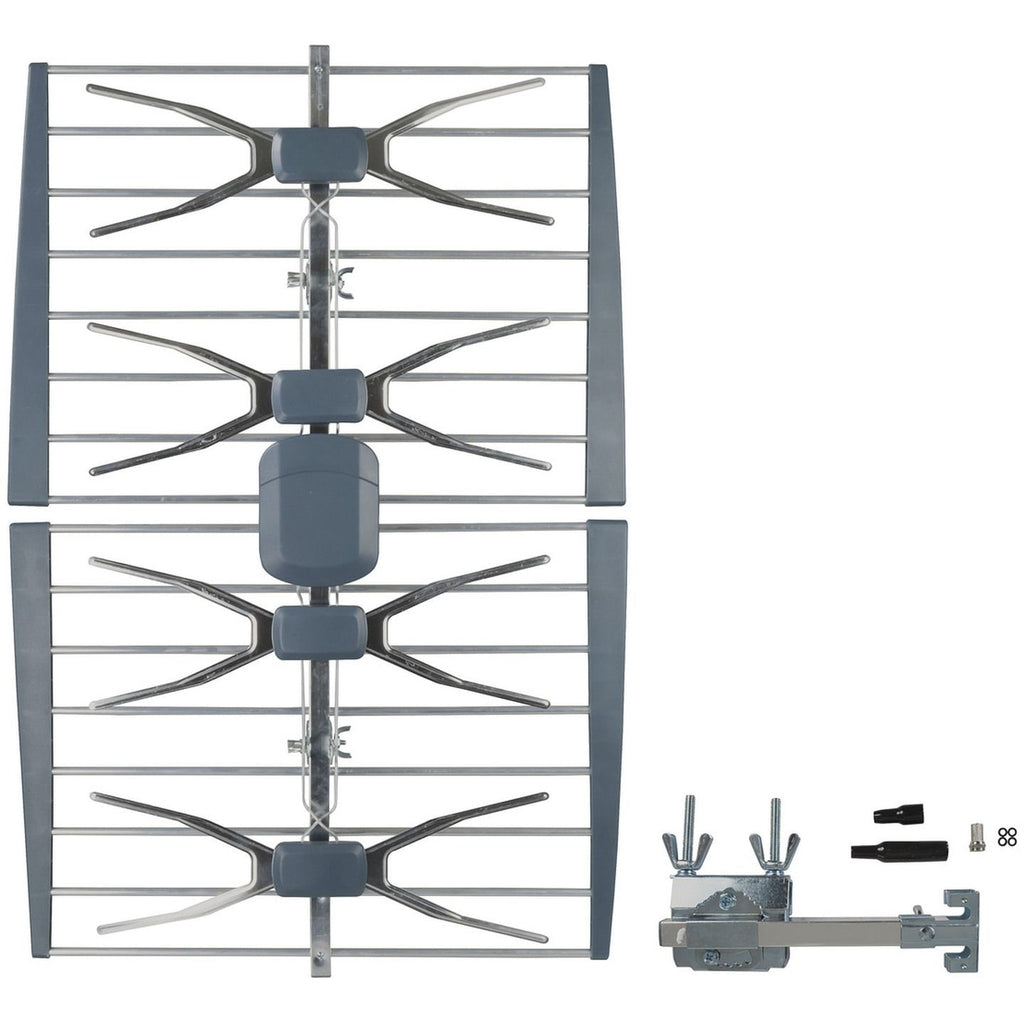

This heavy duty UHF phased array is ideal for problem digital reception areas where you may not have direct line of sight to the transmitter or there may be multipath issues due to reflected signals. It is capable of receiving either horizontal or vertical signals by changing the orientation of the heavy duty mounting bracket/U-bolt assembly. The LTE filter provides protection against 4G/LTE telephone communications.

Specifications

• Gain: 12.5dB
• Wind load (N): 78
• Frequency (MHz): 519-694
• Beamwidth (Hor): +/-25 degrees
• Weight(Kg): 1.65
• Channels: 27-51
• Beamwidth (Ver): +/-20 degrees
• Size (mm): 815 x 545F connector: yes
• Front to Back ratio: 22dB
• No of Elements: 4
• Impedance: 75 Ohm
