20A MPPT Solar Charge Controller for Lithium or SLA Batteries
$159.00
Sale price
$159.00
Regular price
Skip to product information
20A MPPT Solar Charge Controller for Lithium or SLA Batteries
$159.00
Sale price
$159.00
Regular price
Pickup available at 40B George Street
Usually ready in 24 hours

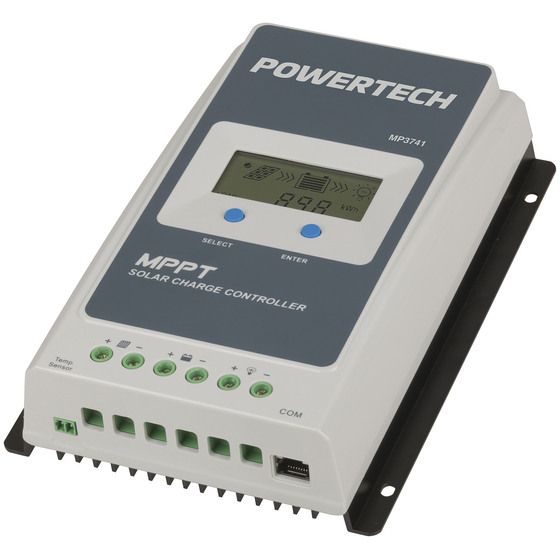

Powertech 20A MPPT solar charge controller for compatible 12V or 24V lead-acid and lithium battery systems.
Product code: MP3741
- Supports sealed, gel and flooded lead-acid batteries and supported lithium profiles
- Solar array maximum: 260W at 12V or 520W at 24V
- PV input range: 16–100V DC
- Maximum load current: 20A

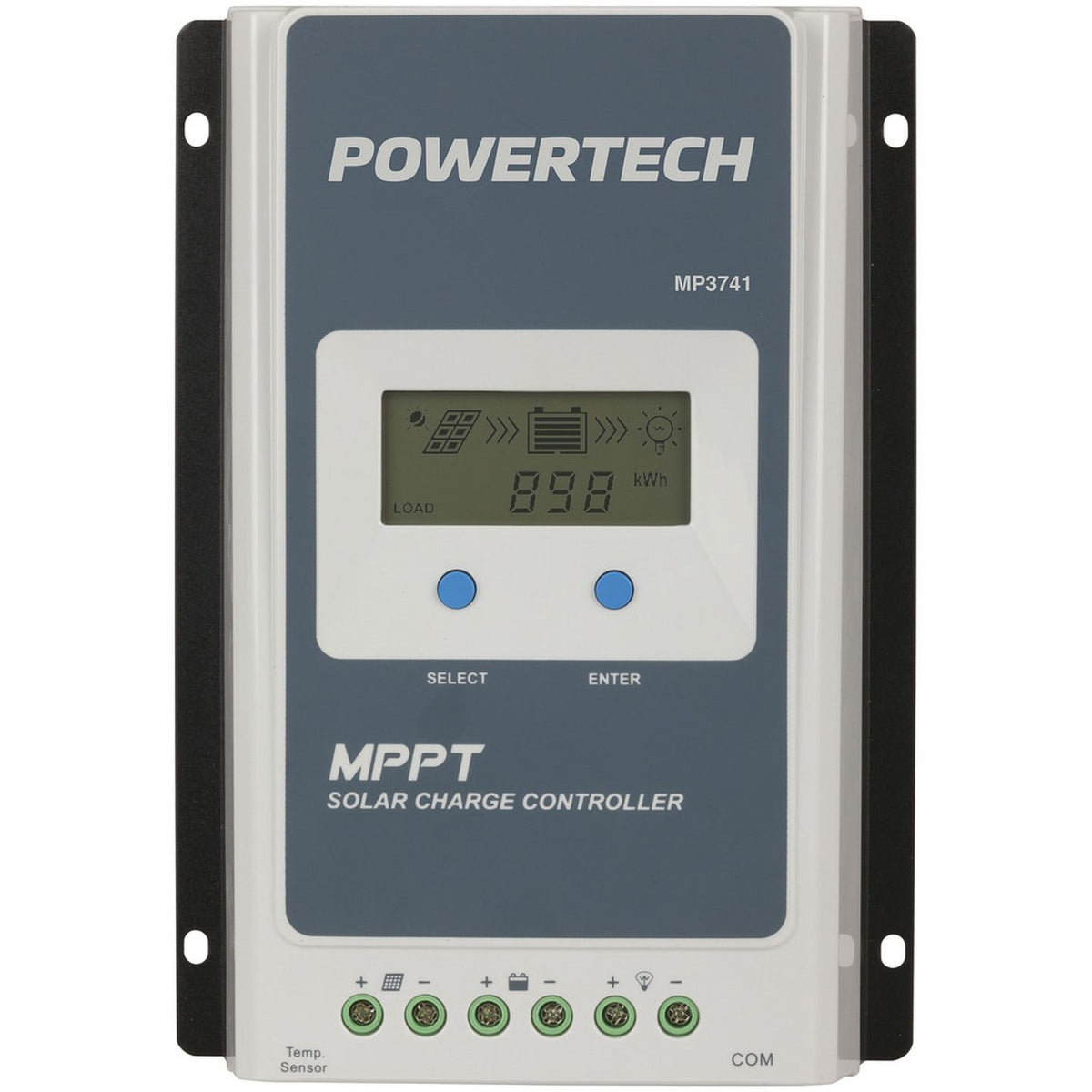

- Backlit LCD, RS485 communication and common negative grounding
- Heavy-duty screw terminals for cable up to 10AWG
- Dimensions: 221 × 155 × 52mm; weight: 940g
Lithium modes F04 and F08 apply to 12.8V and 25.6V batteries. If these modes are unavailable, use the separately sold MP3746 programmer with settings from your battery data sheet. Check battery chemistry, charge profile and all PV limits before installation.
